Why GRPU Profile Manufacturers Are Switching to Polyurethane Injection Machines

If you’ve been in the pultrusion business for a while, you know that most profiles used to be made with epoxy. Epoxy has excellent mechanical properties, but one major drawback: it cures slowly. Production lines run at limited speeds, and throughput just can’t compete with newer materials. Epoxy also doesn’t wet out glass fibers as easily, which becomes a problem when you’re making thin-walled sections.

Polyurethane changes the game.

It has much lower viscosity, which means it penetrates fiber bundles quickly and thoroughly. Cure times are significantly shorter—profiles come out of the die in minutes rather than hours. With the same heating section and puller, you can ramp up line speeds dramatically. Add to that the inherent strength, corrosion resistance, and excellent thermal insulation of polyurethane composites, and it’s no surprise that GRPU (glass-reinforced polyurethane) is taking over markets like photovoltaic frames, window profiles, and cable trays.

But polyurethane has one weakness: it’s extremely sensitive to moisture. Isocyanate—one of the two components—reacts aggressively with water vapor in the air. The result? Bubbles form inside the profile, creating voids that compromise structural integrity. That’s why you can’t use open dip tanks for polyurethane pultrusion. You need a closed injection system that seals the resin and fiber together in a injection box, keeping atmospheric moisture out.

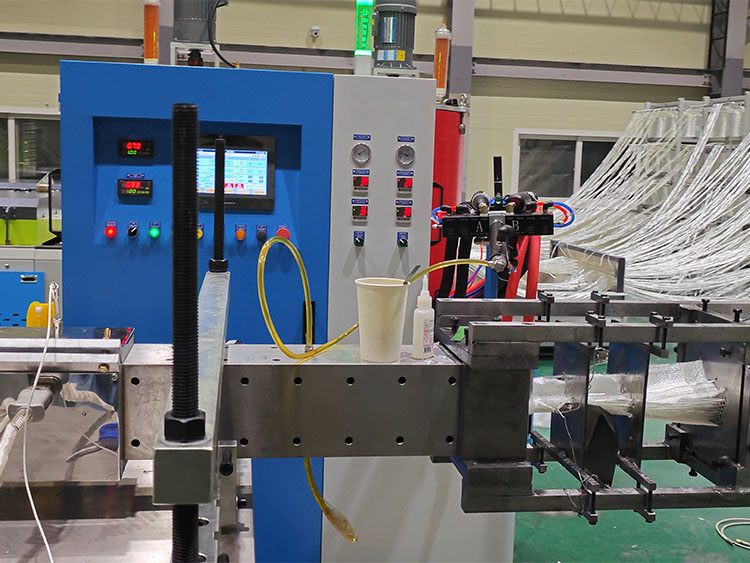

That’s exactly what Googio Machinery’s polyurethane pultrusion injection machine is built for.

This system solves three core problems that plague manual or outdated setups.

1. Accurate ratio control
Polyurethane is a two-part system: isocyanate (A) and polyol blend (B). If the mixing ratio drifts off, you get incomplete curing (soft, weak profiles) or runaway reactions (gelation inside the die). Googio uses servo motors driving high-precision gear metering pumps to keep the ratio within tight tolerances. Simply set the desired ratio on the touchscreen, and the machine handles the rest—no manual weighing, no guesswork.

2. Thorough mixing
Even with the right ratio, poor mixing leads to localized under-cure and inconsistent properties. Googio’s system features a static mixer—no moving parts, just a series of helical elements that split, recombine, and shear the two components into a uniform blend. It’s reliable, maintenance-free, and delivers homogeneous resin every time.

3. Stable temperature control
Polyurethane viscosity varies significantly with temperature. Cold resin becomes thick, straining pumps and causing flow fluctuations. Hot resin accelerates reactivity—it may start gelling before reaching the die. Googio’s precision temperature management system maintains constant temperatures in both tanks and hoses, so the resin’s flow behavior stays consistent regardless of ambient conditions. Winter or summer, the output remains stable.

Beyond these core functions, the machine comes loaded with practical features:

• PLC-based automation with an intuitive HMI—operators can be trained in just two days.

• Automatic recirculation during idle periods—keeps material from settling or clogging lines.

• One‑click high‑pressure cleaning—flush the mixing head and hoses without dismantling parts.

• Low-level and fault alarms—alerts for material shortage or any system error, with error codes shown on screen.

Googio’s polyurethane injection systems are already serving customers in photovoltaic frame manufacturing, window profile pultrusion, cable tray production, and composite insulator rod making. You’re welcome to visit their facility in Dongguan with your own fiber reinforcement and resin to test the machine on your actual profiles—satisfaction before purchase is guaranteed. The engineering team can also tailor the injection parameters—ratio, output, temperature, line speed synchronization—to match your specific cross‑section geometry and production targets.

If you’re currently hand-mixing, using open dip tanks, or struggling with bubbles, inconsistent ratios, or low efficiency, it’s time to talk to Googio. Their engineers understand the pultrusion process inside out and can guide you through a complete system upgrade.
