Foamable Silicone Precision Dosing System
- Information

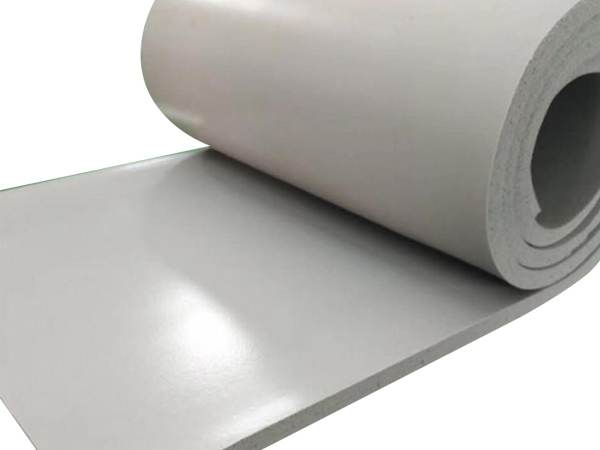

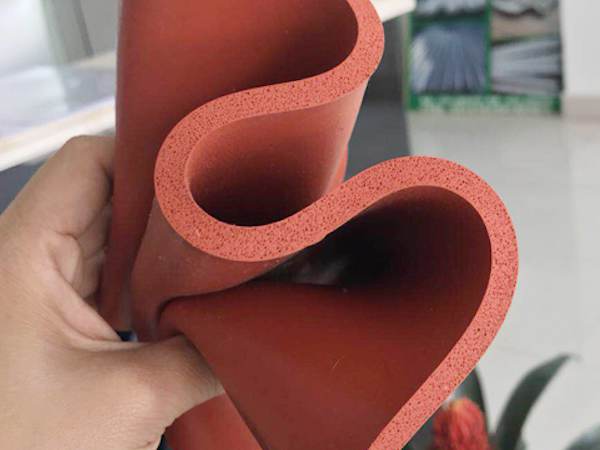

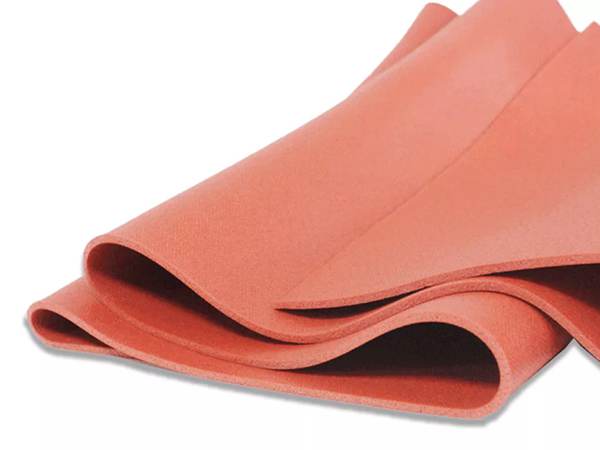

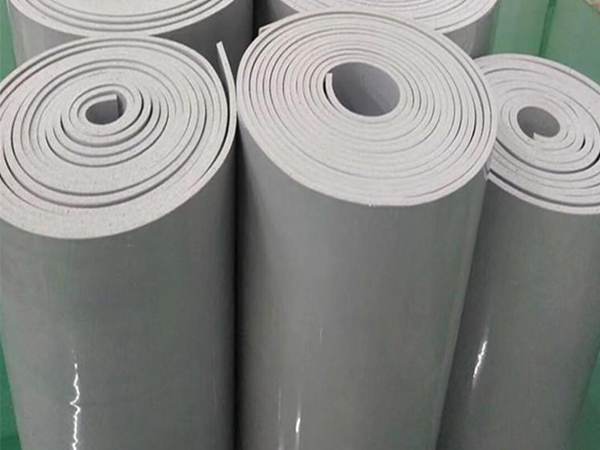

Application Scenarios

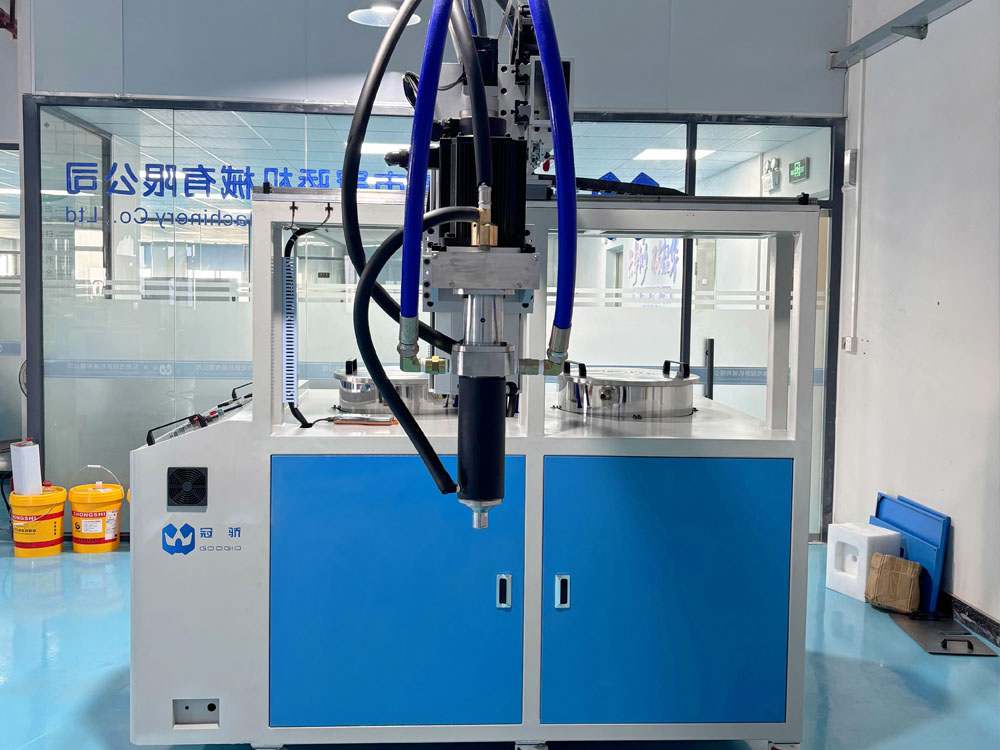

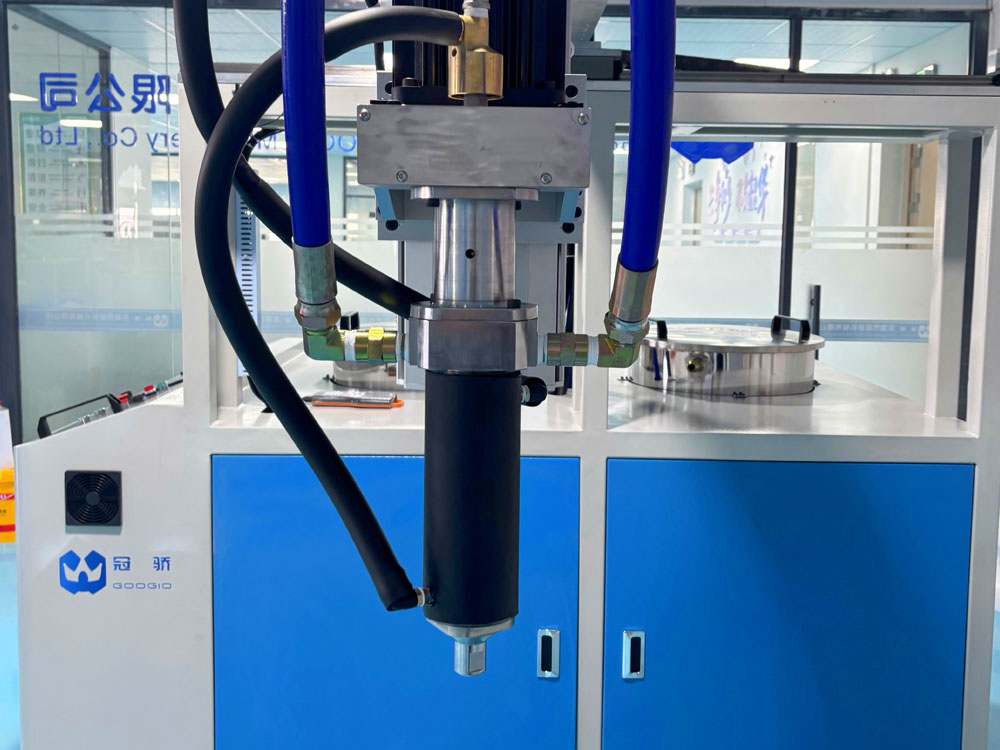

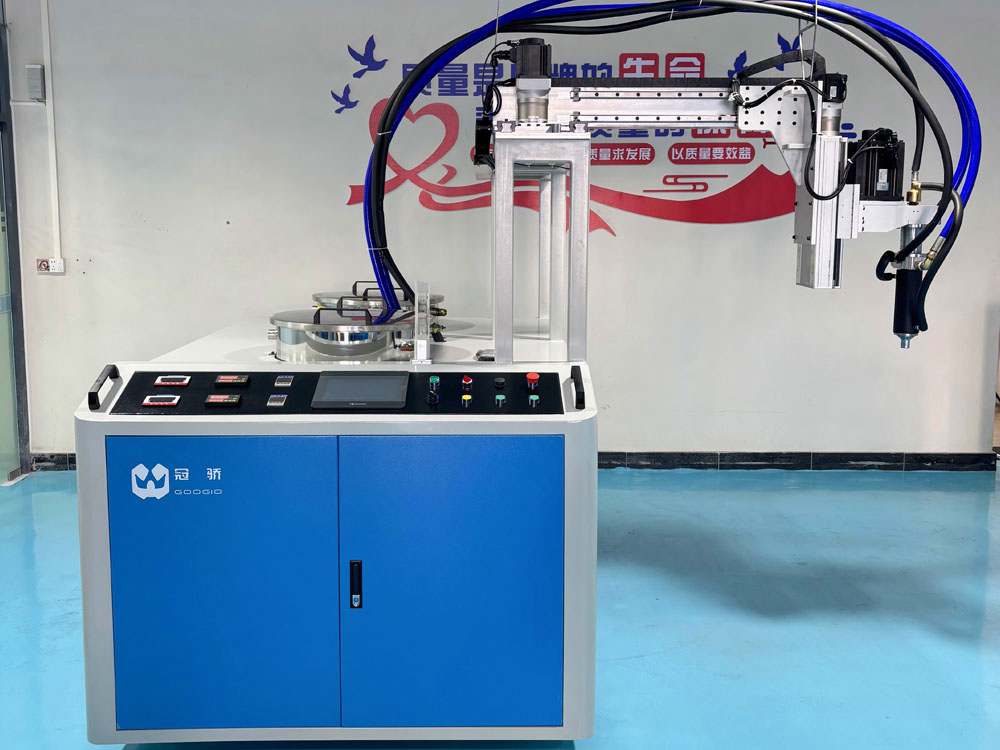

Equipment Introduction

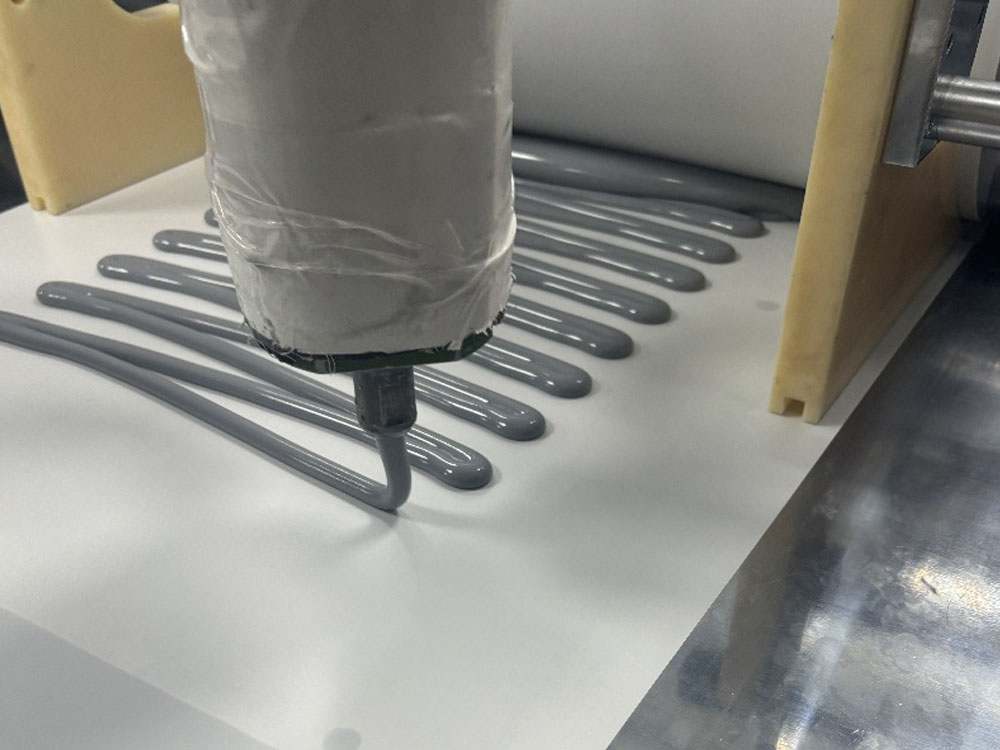

Our independently developed Foamable Silicone Precision Dosing System delivers precision metering, proportioning, and mixing of two-component high-viscosity silicone for continuous foam rolling production, featuring PLC-controlled operation with an intuitive HMI touchscreen. The system integrates dual high-efficiency heat exchangers and targeted water-cooling (mixing chamber/shaft) to achieve rapid material temperature control (±2°C). Equipped with servo-driven twin-screw pumps specifically engineered for viscous fluids, it maintains dosing accuracy within ±0.1% during 24/7 operation, ensuring stable long-term output for demanding foam sheet applications.
Product Advantages
1.Precision Engineering
★±1% Dosing Accuracy
★Real-time Pressure/Temperature Monitoring
2.Intelligent Control

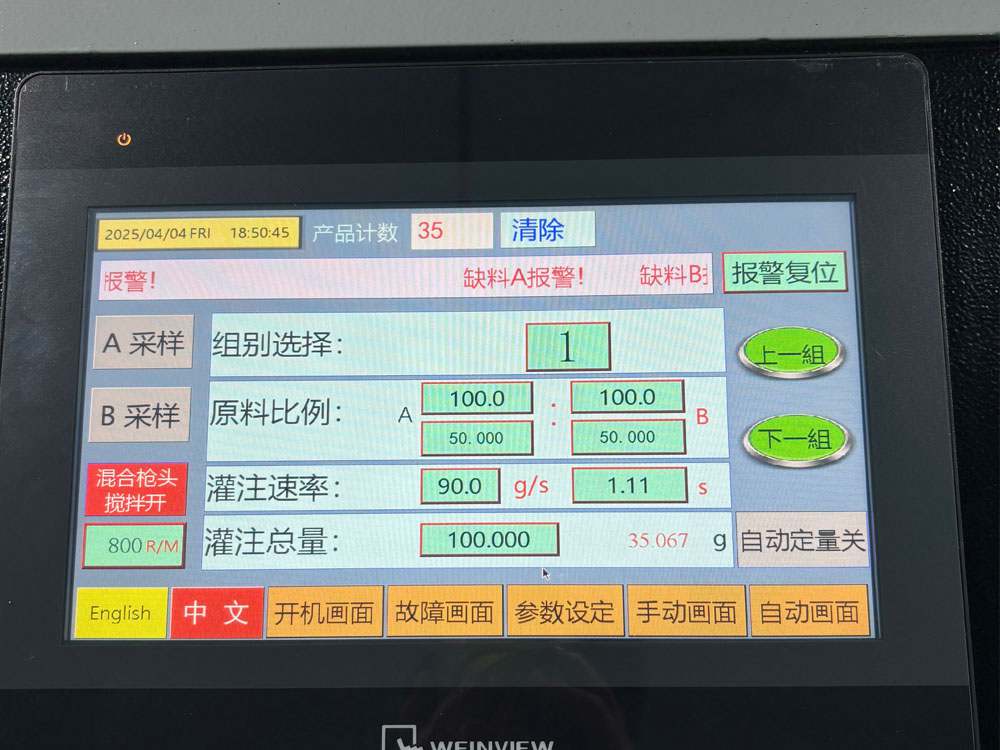

★PLC-HMI Integrated Architecture
★Dynamic Ratio-Flow Adjustment
★Continuous Flow Dynamic Shear Mixing
★Dynamic Variable-Speed Stirring
★AutomaticMaterial feeding
★Automatic fault alarm
3.Reliability Focused
★Continuous 24/7 Feeding
★Material Depletion Alert System
4.Advanced Thermal Management
★high-efficiency heat exchangers and targeted water-cooling (mixing chamber/shaft)
★Precision Cooling (±2°C)
5.User-Centric Design
★One-Touch Recipe Recall
★Modular Configuration Options
Equipment parameters
| Standard configuration | |
| Dimension | L1450*W2150*H2300mm |
| Weight | About 1200Kg |
| Power supply | 380V 50Hz three-phase five wire |
| Air supply | 0.4-0.8MPa |
| Power | About 10Kw |
| Control system | PLC programming control |
| Display mode | HMI |
| Tanks capacity | 100L*2(customizable) |
| Liquid level alarm | Load cell |
| Metering system | Servo motor&screw pump(48CC、96CC、200CC) |
| Mixed mode | Low speed dynamic mixing |
| Mixing ratio | 100:100(adjustable) |
| perfusion rate | Depending on the viscosity of adhesive and the selection of the pump body |
| Accuracy error | ≤±0.01 |
| Module itinerary | X:1200mm,Z:200mm,Y-axis manual 200mm |
| Cooling method | Efficient heat exchanger water circulation cooling and temperature reduction |
| Cooling position | The mixing shaft,mixing cup,and connecting base can all be cooled by wate |
| Optional function | |
| cooling-watermachine | 2HP industrial low-temperature 0-degree chiller |
| Agitator of tank | Stir to prevent sedimentation and reduce material viscosity |
| Pressurization of tank | Pressurization is convenient for discharge, and the flow rate can be appropriately increased |
| Automatic feeding | Screw feeding pump, with the function of emulsifying and dispersing materials |
| ★Note: Reference configuration shown. Production units will be tailored to meet specific customer technical requirements. | |
